Customized High Quality Low Cost 40 ft Prefab Container Removable Modular Container House on China WDMA for UK

Customized High Quality Low Cost 40 ft Prefab Container Removable Modular Container House Product Description Product & Features 1. Mobile, reusable 2.The layout of doors and windows is flexible and beautiful.3. Flexible, durable and economical.4. Fast installation, environmental protection and no construction waste. 5.Heat insulation, windproof, shockproof, moisture-proof, waterproof, leakage...
material :

China Windows and Doors Manufacturers Association

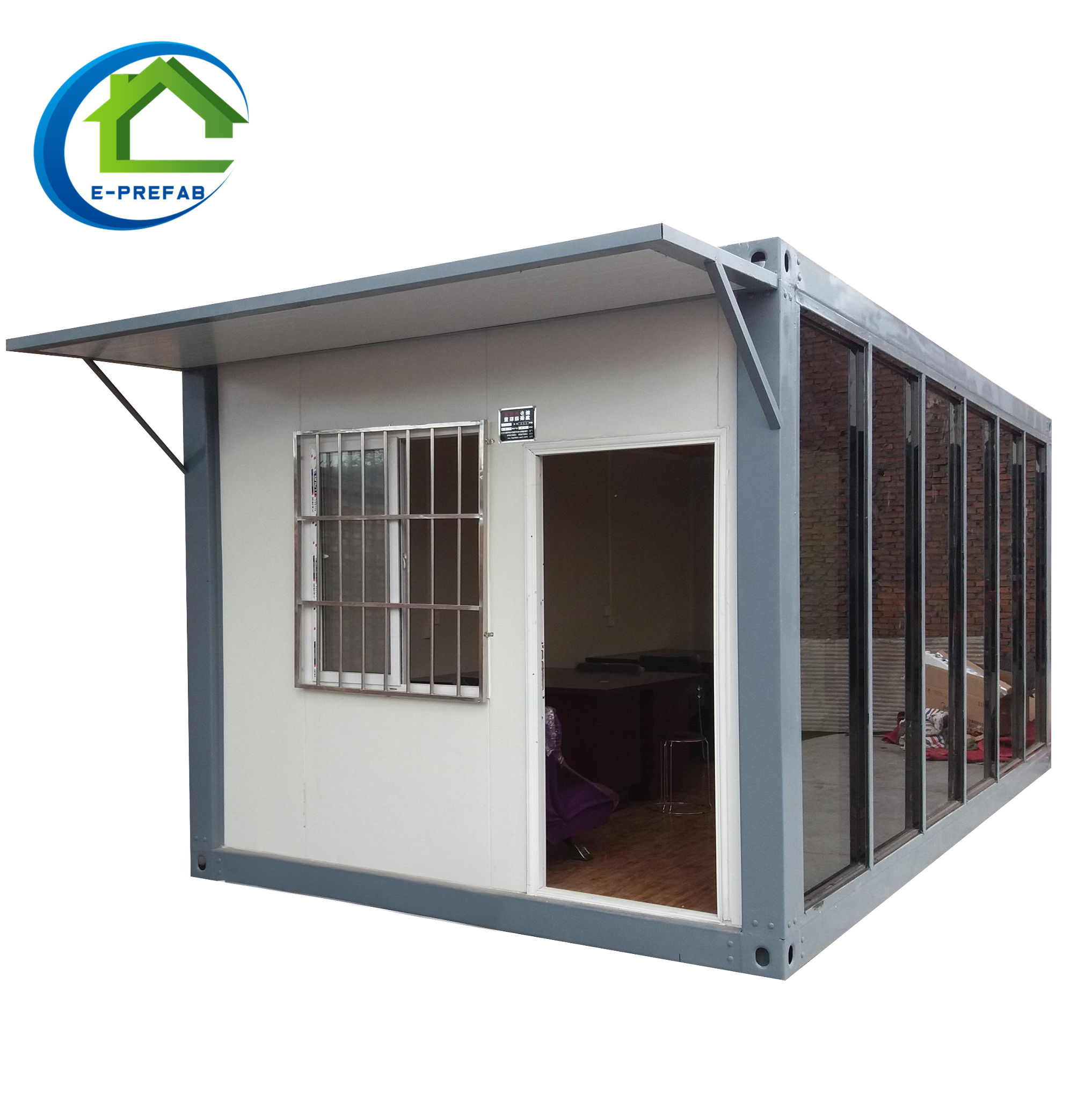

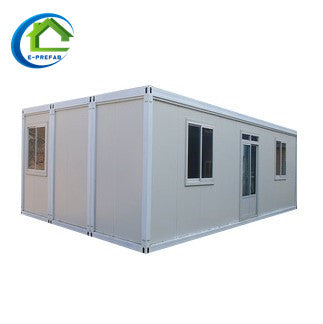

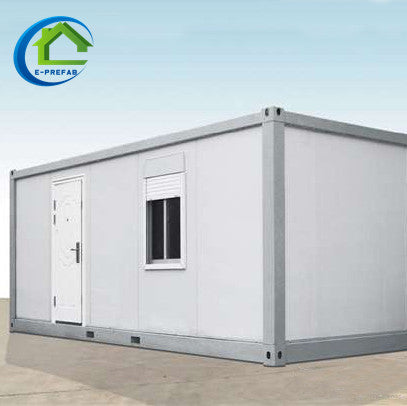

Customized High Quality Low Cost 40 ft Prefab Container Removable Modular Container House
Product Description

Product & Features
1. Mobile, reusable
2.The layout of doors and windows is flexible and beautiful.
3. Flexible, durable and economical.
4. Fast installation, environmental protection and no construction waste.
5.Heat insulation, windproof, shockproof, moisture-proof, waterproof, leakage proof, environmental protection, reliable, fast and
easy to move, flexible combination.
Installation
Specification
Specification
20ft:6058*2438*2896



Design Parameter
Life span: up to 20 years
Floor Live load:   2.0 KN /㎡
Roof Live load: 0.5 KN/㎡
Wind load: 0.6 KN/㎡
Earthquake-resistance:Grade 8; Fire-proof:Grade A
Wall system
75mm   0.4/0.4mm rock wool board, density 80kg/m³, Fire-proof Grade A non-flammable




Roof system
Steel frame&accessories: Main roof frame: cold formed steel, thickness: 2.5mm,
galvanized with 4pcs galvanized lifting corners.
Roof purlin: C85*1.5mm, galvanized Q235B steel
Life Span
Roof panel:0.45mm, thickness Aluminum-zinc color steel structure, PE finishing coat, Color white 360° full connection
Wallboard
Insulation:100mm, thickness glass wool with aluminum foil, Grade A fire-proof
Floor
Ceiling board: V-831 type, 0.4mm Aluminum-zinc color steel sheet, PE finishing coat,
Color: white
Floor system
Steel structure & accessories:Main floor frame:cold formed steel, thickness 2.5mm.
Floor purlin : C120*50*2.0,galvanized Q235B steel

Door & Window
Insulated light steel door: Entrance door is W840* H2035mm
Plastic steel window, double glass 3mm thickness, with mosquito screen and security bar.
Stand window: W1150*H1100mm

Electric system
All the core wires are copper wire, 1 air conditioning socket, 2 conventional sockets, 1 single switch, 2 ceiling lights, 1distribution box, 1 32A leakage protection switch, 1 16A air switch, 1 set of industrial socket, 1 industrial socket box
Painting
Electrostatic spraying process, lasting and non discoloration
Details Create High Quality
Material
Project Show
Overseas Case
China Case
Company Profile

Weifang Dongye Prefabricated House Co., Ltd

The company was founded in 2011, mainly produces steel structure,prefabricated house,container house and the design and installation of steel structure engineering and other service.Products are exported to Asia, Africa, the Middle East, Australia and the European Union and other countries and regions.
Our mission: to be the most professional supplier and service provider of prefabricated house.
We take innovation bravely, integrity management, win-win cooperation as our responsibility. willing to take the first-class
technology, first-class products, first-class business, first class reputation to service for the friends from all over the world.

Certifications
FAQ
1. Do you provide on-site installation service?
a. General projects, we can provide Installation guide service based on customers’ request.
b. Installation supervision charge: 150USD/day, customer should responsible for the travel fee, accommodation, translation fee,
and ensure staff’s health and safety.

2.What’s your delivery time?
Normally, delivery time is 30 days after receive deposit. Large order delivery time should be arranged separately.

3.How to control the quality of your product?
a. quality of the design: think about possible problems in advance and provide a high-quality design solution.
b. quality of the raw material: choose the qualified raw material
c. quality of the production: precise manufacturing technique, experienced workers, strict quality inspection.

4. How to deal with quality problems?
Within the warranty period, PTH will responsible for all quality problems caused by production.

5. If there is a clear service life of your products? If have, how long?
Under conventional climate and environment, the service life of container house steel frame is 20 years
